Bicarbonate Mixer for Haemodialysis
Bicarbonate Mixer for Haemodialysis
- International Quality Standard.
- Fastest Delivery.
- Export Standard Packaging.
- Customized Production.
Product Description:

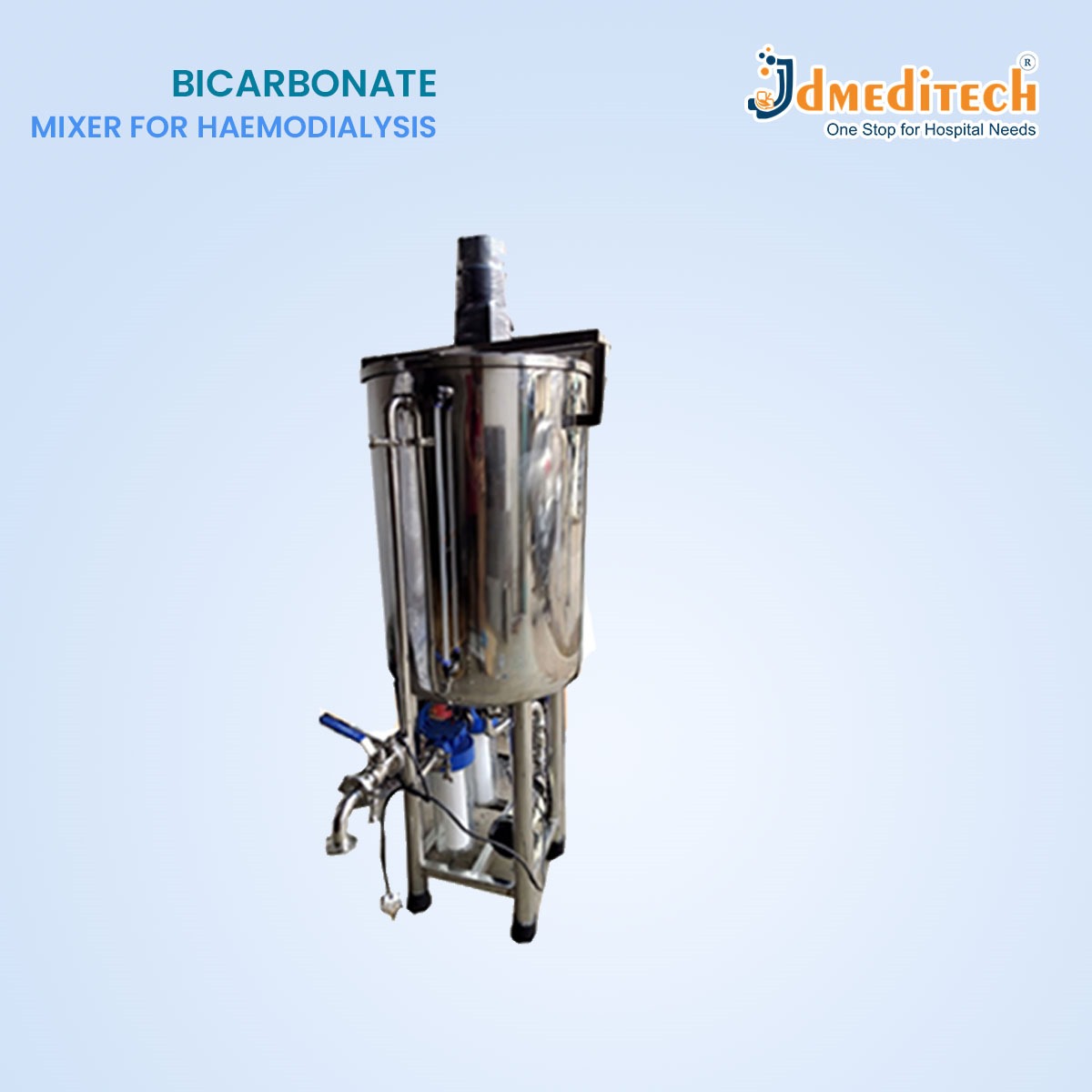

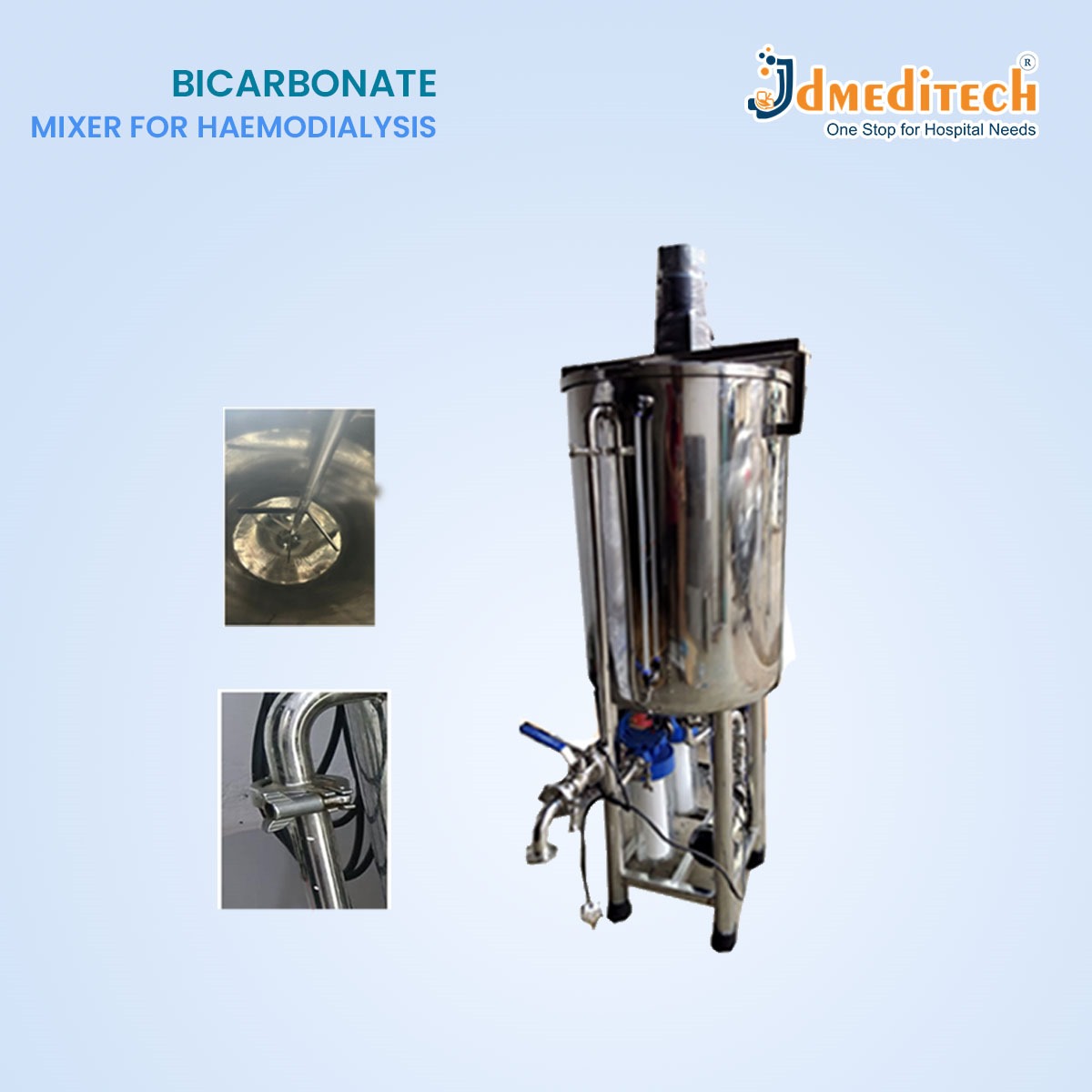

Bicarbonate Mixer for Dialysis Applications
JDMeditech is a leading manufacturer and exporter of dialysis products, offering a high-quality Bicarbonate Mixer designed for hospitals, dialysis centers, and kidney care facilities. This advanced medical device ensures precise preparation and mixing of bicarbonate solutions, such as sodium bicarbonate, used in dialysis and other clinical applications.
Product Description
The Bicarbonate Mixer is engineered to deliver accurate and consistent mixing performance. It uses a motor-driven system combined with a recirculation mechanism to maintain uniform solution quality. The design focuses on hygiene, durability, and ease of operation, making it ideal for critical healthcare environments.
Technical Specifications
Material Construction
- Tank, pipes, outlets, and valves made from SS 304 / SS 316 stainless steel
- Corrosion-resistant and suitable for medical use
Mixing Tank
- Capacity: 100 liters(customization available)
- Design: Conical bottom for efficient drainage and cleaning
Mixing System
- Type: Motor-driven stainless steel blades
- Blade Levels: Dual-level mixing system
- Speed: 2500 – 3000 RPM for effective blending
Circulation System
- Continuous recirculation from bottom to top through SS piping
- Equipped with 2-micron filter for enhanced purity
- Integrated with a high-performance circulation pump
Control System
- Separate On/Off switches for:
- Mixing motor
- Circulation motor
Valve Configuration
- Circulation Valve
SS ball valve positioned below the tank, followed by the pump and filter - Collection Valve
SS ball valve placed after the filter for dialysate collection
Additional Design Features
- Liquid level indicator with removable tuning for easy monitoring
- Fully dismantlable SS piping system for convenient cleaning
- Stable and noise-free platform during operation
- Anti-vibration legs fitted with rubber/synthetic bushes
- Design optimized for easy cleaning and maintenance
Circulation Pump Specifications
- Pump Type : Centrifugal, Magnetic Drive, Non-Self Priming
- Material : Polypropylene (PP)
- Shaft : Ceramic
- Components : Viton, Glass-Filled Teflon (GFT), Carbon
- Seal Type : Seal-less design
- Impeller : Semi-open type
Performance
- Maximum Flow : 30 liters per minute
- Maximum Head : Up to 5 meters
- Maximum Liquid Density : 3
- Fluid Temperature : Up to 70°C
Motor Details
- Power : 16 HP
- Speed : 2800 RPM
- Frequency : 50 Hz
- Phase : Single phase
- Type : NFLP motor
Connections
- Inlet & Outlet: 18 mm × 18 mm (nozzle/threaded)
- Magnet: High-power rare earth magnets
Key Features
- Ensures accurate and consistent bicarbonate mixing
- Designed for closed and hygienic mixing systems
- User-friendly controls for easy operation
- Built with medical-grade, durable materials
- Suitable for dialysis units, ICUs, and hospital pharmacies
